Introduction to STM32G030C8T6 and Common Issues

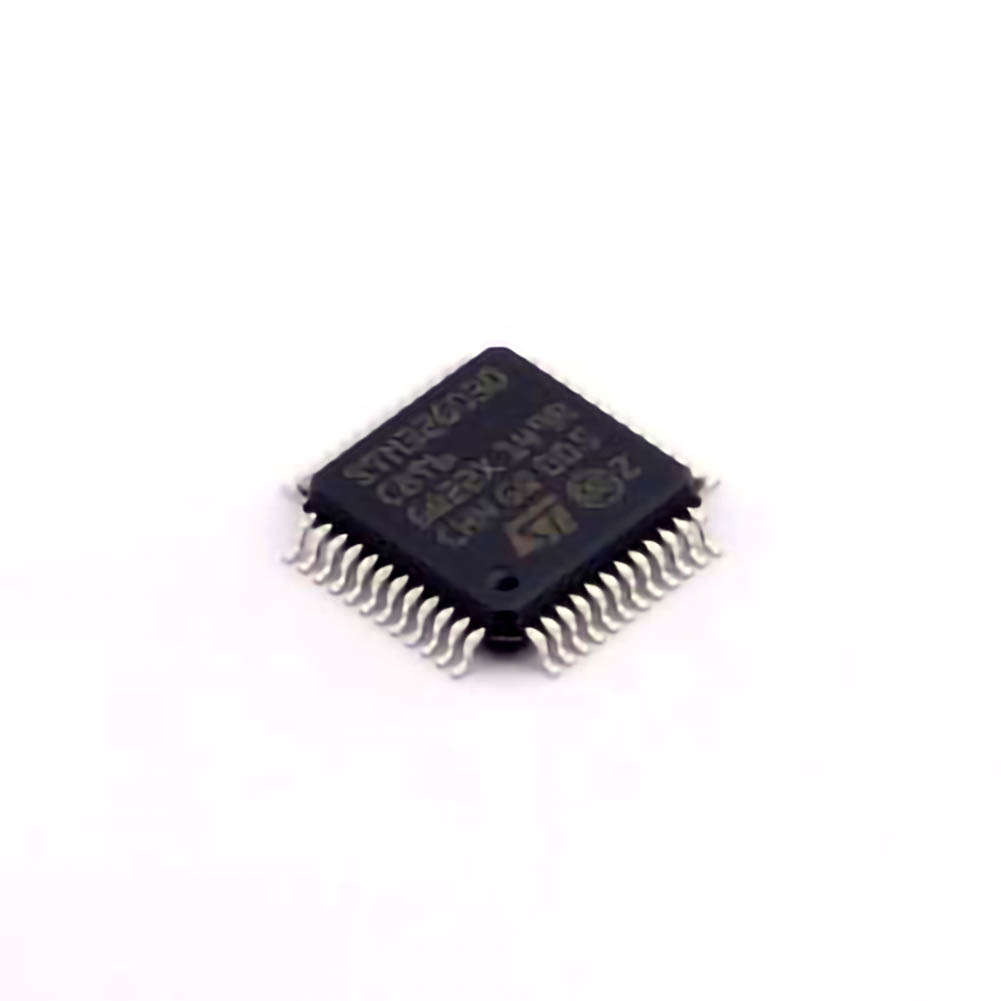

The STM32G030C8T6, part of the STM32 family of microcontrollers from STMicroelectronics, is a highly versatile and affordable option for embedded system designs. With its ARM Cortex-M0+ core, it delivers a perfect balance of Power , performance, and energy efficiency, making it suitable for a wide range of applications, from consumer electronics to industrial control systems. However, as with any microcontroller, users may encounter common issues during development and deployment. This article highlights some of the most frequent challenges faced by engineers and hobbyists when working with the STM32G030C8T6 and offers actionable troubleshooting tips.
1. Power Supply Issues
A frequent problem when working with the STM32G030C8T6 is ensuring a stable power supply. The microcontroller requires a clean, regulated voltage input, typically around 3.3V, for proper operation. If the voltage fluctuates or is noisy, the device may behave unpredictably, causing failures during boot-up or in operation.
Solution:
Ensure that the power supply is within the specified range (typically 3.0V to 3.6V for the STM32G030C8T6). Use high-quality voltage regulators with low ripple to minimize noise. It’s also crucial to use proper decoupling capacitor s (typically 100nF and 10µF) close to the VDD and VSS pins to filter out any voltage spikes and stabilize the power supply.
2. Debugging and Programming Issues
Another common issue is related to debugging and programming the STM32G030C8T6. Users may face difficulties when trying to upload firmware or connect to the microcontroller using debuggers like ST-Link or J-Link.
Solution:
Check the SWD interface : Make sure that the Serial Wire Debug (SWD) interface is properly connected, as this is the primary method for programming and debugging STM32 microcontrollers.
Use STM32CubeProgrammer: Ensure that you're using the latest version of STM32CubeProgrammer, which supports a wide variety of STM32 MCUs. If using an external programmer like ST-Link, ensure the firmware is up to date.
Verify Boot Configuration: If the microcontroller fails to enter programming mode, check the BOOT0 pin. A common mistake is leaving the BOOT0 pin at an incorrect voltage level. Setting it high (to 3.3V) will instruct the microcontroller to enter the system Memory bootloader during reset, allowing for firmware upload via UART.
3. I/O Pin Conflicts
The STM32G030C8T6 features a variety of I/O pins that can be used for different purposes, such as GPIO, ADC, PWM, or communication peripherals like SPI, UART, and I2C. However, improper configuration or conflicts between peripherals can lead to malfunctioning circuits.
Solution:
Pinout Review: Double-check your pin assignments in STM32CubeMX or your schematic. Ensure that each pin is configured correctly and there are no conflicts between multiple peripherals trying to use the same pin.
Peripheral Initialization: When configuring peripherals (such as UART or I2C), make sure you initialize them properly in your code. A missed initialization step can cause the peripherals to fail to communicate correctly.
Alternate Functions: The STM32G030C8T6 pins are multipurpose and can serve alternate functions. If using a particular pin for a communication interface, ensure it is not inadvertently configured as a GPIO in your firmware.
4. Clock Configuration Problems
Clock configuration is another common area where users encounter issues. The STM32G030C8T6 relies on its internal clock and can also use an external oscillator or crystal for higher precision. Misconfiguring the clock settings can result in incorrect system Timing , leading to erratic behavior, especially in real-time applications.
Solution:
Verify Clock Source: Check your clock configuration using STM32CubeMX. Ensure that the clock source (HSE or internal RC oscillator) is correctly selected and configured to provide a stable frequency.
System Clock Configuration: Verify that the system clock (SYSCLK) is properly derived from the chosen clock source. If you're using a high-speed external oscillator, ensure it's connected correctly, and the capacitors are correctly sized as per the oscillator specifications.
Check PLL Settings: If using a Phase-Locked Loop (PLL) to multiply the system clock, ensure that the PLL settings (input and output multipliers) are correctly configured to match the target operating frequency.
Advanced Troubleshooting Techniques for STM32G030C8T6
While the previous section covered some of the more basic issues, there are several advanced troubleshooting steps that developers can take to ensure optimal performance of the STM32G030C8T6. These methods can help diagnose and resolve issues related to performance, peripheral behavior, and more complex software interactions.
5. Watchdog Timer Resets
Watchdog timers are essential for ensuring that the system can recover from software or hardware malfunctions. However, improperly configured watchdog timers can inadvertently cause system resets if the timer is not periodically refreshed.
Solution:
Ensure Proper Watchdog Configuration: If using the Independent Watchdog (IWDG) or Window Watchdog (WWDG), verify that the timers are properly configured and that the appropriate refresh commands are executed in the main program loop.
Check Timing: If the watchdog is too sensitive (i.e., set with too short a timeout), the system might reset too frequently. Adjust the timeout value to a level that balances safety with performance.
Debugging Watchdog Triggers: Use debugging tools to track where the watchdog timeout is triggered. This can help identify which part of the code or hardware is causing the issue.
6. Incorrect Peripheral Timing
Many STM32G030C8T6 peripherals, such as UART, SPI, and I2C, rely on precise timing for proper data transfer. Incorrect timing settings in your firmware can lead to communication errors, data corruption, or failed transfers.
Solution:
Ensure Correct Baud Rates and Clock Settings: When configuring communication peripherals like UART, SPI, or I2C, ensure that the baud rate or clock settings match those of the external devices. Mismatched settings can result in corrupted data or failure to establish communication.
Use STM32CubeMX for Peripheral Configuration: Use STM32CubeMX to configure peripherals, as it automatically sets correct timings and parameters, reducing the likelihood of errors.
Signal Integrity: For high-speed communication, ensure that the signal integrity is maintained by using appropriate PCB routing practices, such as minimizing trace length and using proper termination resistors where necessary.
7. Memory and Flash Issues
If your STM32G030C8T6 firmware becomes unstable after prolonged operation or fails to start, the issue could be related to the internal Flash memory. Flash wear, incorrect memory access, or faulty read/write operations can lead to system failure.
Solution:
Check Flash Integrity: Use built-in memory tests or external tools to check the integrity of the Flash memory. Corrupt memory can lead to unpredictable behavior and may require reprogramming or even replacing the microcontroller.
Implement Flash Write Protection: In some cases, it's helpful to enable read-out protection (RDP) or write protection on certain regions of Flash to prevent accidental overwriting or unauthorized access during development.
Ensure Correct Flash Erase and Write Timing: When writing to Flash, ensure that proper timing constraints are met. Flash operations are slow, and improper timing can cause data corruption or incomplete writes.
8. Handling Software Interrupts
STM32 microcontrollers, including the STM32G030C8T6, offer several software interrupts to handle specific events efficiently. However, improper handling of these interrupts can lead to system crashes, unexpected behavior, or missed events.
Solution:
Interrupt Priority: Ensure that interrupt priorities are correctly set in the NVIC (Nested Vector Interrupt Controller) to prevent critical interrupts from being delayed by lower-priority ones.
ISR Optimization: Interrupt Service Routines (ISRs) should be kept as short as possible. Time-consuming operations within ISRs can lead to missed interrupts or timing issues. Offload lengthy processing to the main program loop where possible.
9. Firmware Updates and Version Control
Updating firmware on the STM32G030C8T6 is crucial for ensuring stability, performance, and security. However, firmware updates can occasionally introduce issues if not managed properly.
Solution:
Check for Firmware Compatibility: Always ensure that the firmware is compatible with the current version of your development environment (e.g., STM32CubeIDE) and tools (e.g., STM32CubeMX).
Use Version Control: Implement a version control system, such as Git, to track changes in your firmware. This makes it easier to roll back to previous versions in case a new update causes unexpected problems.
Conclusion
Working with the STM32G030C8T6 can be a rewarding experience for both novice and experienced developers. However, understanding and troubleshooting common issues is key to ensuring smooth development. By following the solutions outlined in this article, you can minimize errors and optimize the performance of your embedded systems projects.
