This guide provides a detailed exploration of the STM32H743ZIT6 microcontroller, covering common issues developers face and offering actionable troubleshooting solutions. Learn how to overcome hardware, software, and performance-related challenges in your STM32H743ZIT6 projects.
STM32H743ZIT6, STM32 troubleshooting, microcontroller, STM32H743, debugging STM32, STM32 performance issues, embedded system development, STM32 solutions, microcontroller debugging
Identifying Common Issues with STM32H743ZIT6 and Troubleshooting Techniques

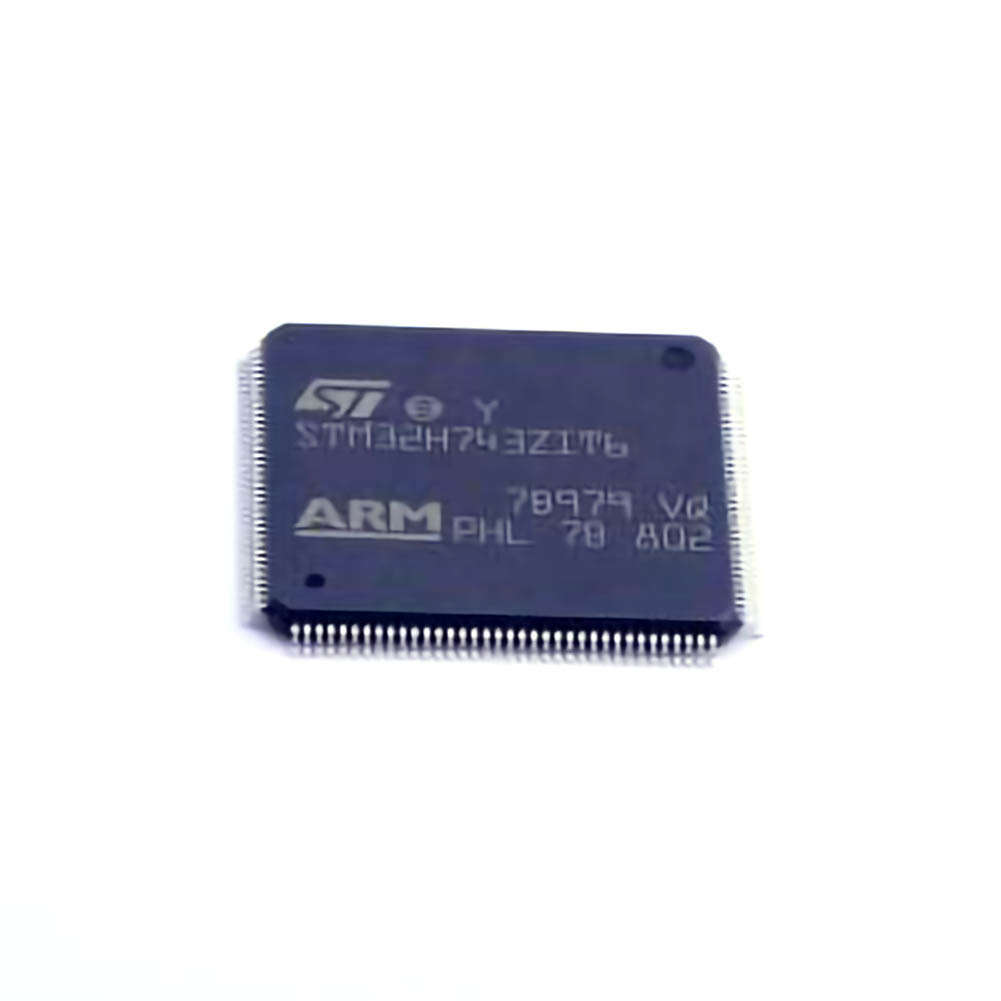

The STM32H743ZIT6, based on the ARM Cortex-M7 core, offers impressive processing Power and versatile I/O options. However, like any advanced microcontroller, developers may encounter issues when implementing their projects. These problems could stem from incorrect configurations, electrical anomalies, or software bugs. In this section, we’ll look at some common problems and how to resolve them efficiently.
1. Power Supply and Reset Issues
One of the most common issues developers face when working with the STM32H743ZIT6 is related to power supply and reset configurations. A microcontroller may appear dead, unresponsive, or behave erratically due to power instability or improper reset sequencing.
Symptoms:
The STM32H743ZIT6 fails to boot or reset correctly.
The device enters an unintended low-power mode (e.g., Sleep or Stop mode) and doesn't resume correctly.
Unstable system performance or peripheral malfunctions.
Solutions:
Ensure Stable Power Supply: The STM32H743ZIT6 requires a stable voltage between 1.7V and 3.6V. A fluctuating or noisy power supply can cause boot failures or unpredictable behavior. Use low-dropout regulators (LDOs) with proper decoupling capacitor s to filter out noise.
Reset Pin Configuration: Make sure the NRST pin is properly connected and that the reset circuitry is functioning correctly. You may want to use an external reset supervisor IC for more robust reset management.
Watchdog Timer: Enable the independent watchdog timer (IWDG) or the window watchdog (WWDG) to ensure the microcontroller can recover from potential software or hardware failures that could cause a system hang.
2. Clock Configuration Errors
STM32 microcontrollers, including the STM32H743ZIT6, rely heavily on clock configuration for proper operation. Misconfigured clocks can lead to various issues, including system instability, peripheral malfunctions, or failure to boot.
Symptoms:
System operates at an unexpected clock speed.
Certain peripherals fail to operate, or timers/interrupts malfunction.
Incorrect frequency reported in clock-related diagnostics or software logs.
Solutions:
Review Clock Settings in the STM32CubeMX: STM32CubeMX is an essential tool that provides an intuitive graphical interface for configuring the STM32H743ZIT6’s clock system. Double-check the configurations, ensuring the HSE (high-speed external) crystal or oscillator is correctly chosen and initialized.
Verify PLL Settings: The phase-locked loop (PLL) multiplier and divider must be correctly set to achieve the desired system clock frequency. Use STM32CubeMX’s Clock Configuration tab to visualize the clock tree and verify the frequency for the core, peripherals, and external devices.
Check Oscillator Quality: Ensure the external oscillator or crystal used for the high-speed clock is functioning properly. A damaged or poorly connected crystal can lead to system instability.
3. Peripheral Configuration Problems
Incorrect configuration of the peripherals is another frequent issue faced when working with STM32H743ZIT6. As the microcontroller offers a variety of peripherals, misconfigurations can lead to peripheral failure or unexpected behavior.
Symptoms:
Peripherals (UART, SPI, I2C, etc.) fail to communicate or transmit data.
Timers, PWM outputs, or ADC channels do not work as expected.
Devices connected to the STM32H743ZIT6 exhibit strange or no response.
Solutions:
Pinout and Alternate Functions: One of the most common mistakes is failing to configure the alternate functions for I/O pins correctly. For example, a pin used for USART communication may be incorrectly configured as a GPIO. In STM32CubeMX, use the Pinout tab to ensure each pin is assigned its intended peripheral function.
Check Peripherals Clock: Ensure that the clock to the peripheral (UART, SPI, etc.) is enabled. Many peripherals rely on specific clock sources, so make sure that the peripheral clocks are enabled and properly configured in STM32CubeMX.
DMA Configuration: When using Direct Memory Access (DMA) for efficient data transfer, ensure that the DMA channels are correctly mapped to the peripheral. Also, verify the configuration of the DMA controller, ensuring correct data sizes, priority levels, and interrupt settings.
4. Software Bugs and Debugging Challenges
In complex embedded systems, software bugs can often be the cause of a seemingly hardware-related issue. The STM32H743ZIT6’s powerful capabilities demand thorough and careful debugging practices.
Symptoms:
Random system crashes or hangs.
Incorrect behavior in software logic (e.g., timing-related bugs, faulty interrupt handling).
Peripherals behave unpredictably under specific conditions.
Solutions:
Use STM32CubeIDE for Debugging: STM32CubeIDE offers advanced debugging tools, including real-time trace and variable inspection. Set breakpoints, step through code, and monitor peripheral registers to identify issues quickly.
Check for Stack Overflows and Memory Corruption: An often-overlooked issue is memory corruption due to stack overflows or improper heap management. Utilize STM32CubeIDE’s built-in memory protection unit (MPU) and stack overflow detection features.
Inspect Interrupt Handling: Ensure that interrupt priorities are configured correctly and that interrupt service routines (ISRs) are designed to handle interrupts promptly and without blocking. Misconfigured ISRs can lead to system stalls or missed interrupts.
5. Bootloader and Firmware Loading Problems
Another common challenge developers face when using STM32H743ZIT6 is related to firmware loading and bootloading. If the STM32H743ZIT6 is not booting correctly or loading the firmware as expected, you might be dealing with bootloader misconfigurations.
Symptoms:
Firmware does not load after reset.
The microcontroller gets stuck in the bootloader or cannot enter the application mode.
Unexpected behavior after a firmware upgrade.
Solutions:
Review Boot Mode Selection: The STM32H743ZIT6 has multiple boot modes (e.g., System Boot, User Boot) that determine how the microcontroller loads its firmware. Check the BOOT0 and BOOT1 pins to ensure that the microcontroller is entering the correct boot mode. If you're using an external memory device, ensure it’s correctly connected and configured.
Use ST-Link for Programming: For quick and reliable firmware loading, use an ST-Link debugger/programmer. This tool supports both programming the flash memory and debugging in real-time. Ensure your ST-Link connection is stable and the firmware is correctly compiled and linked for the STM32H743ZIT6 architecture.
Advanced Troubleshooting and Performance Optimization for STM32H743ZIT6
In the second part of this article, we will delve into more advanced troubleshooting and performance optimization techniques. This section focuses on ensuring that your STM32H743ZIT6-based project is not only working but performing at its best.
