Introduction to MMA8451QR1 and Its Significance in Motion Sensing

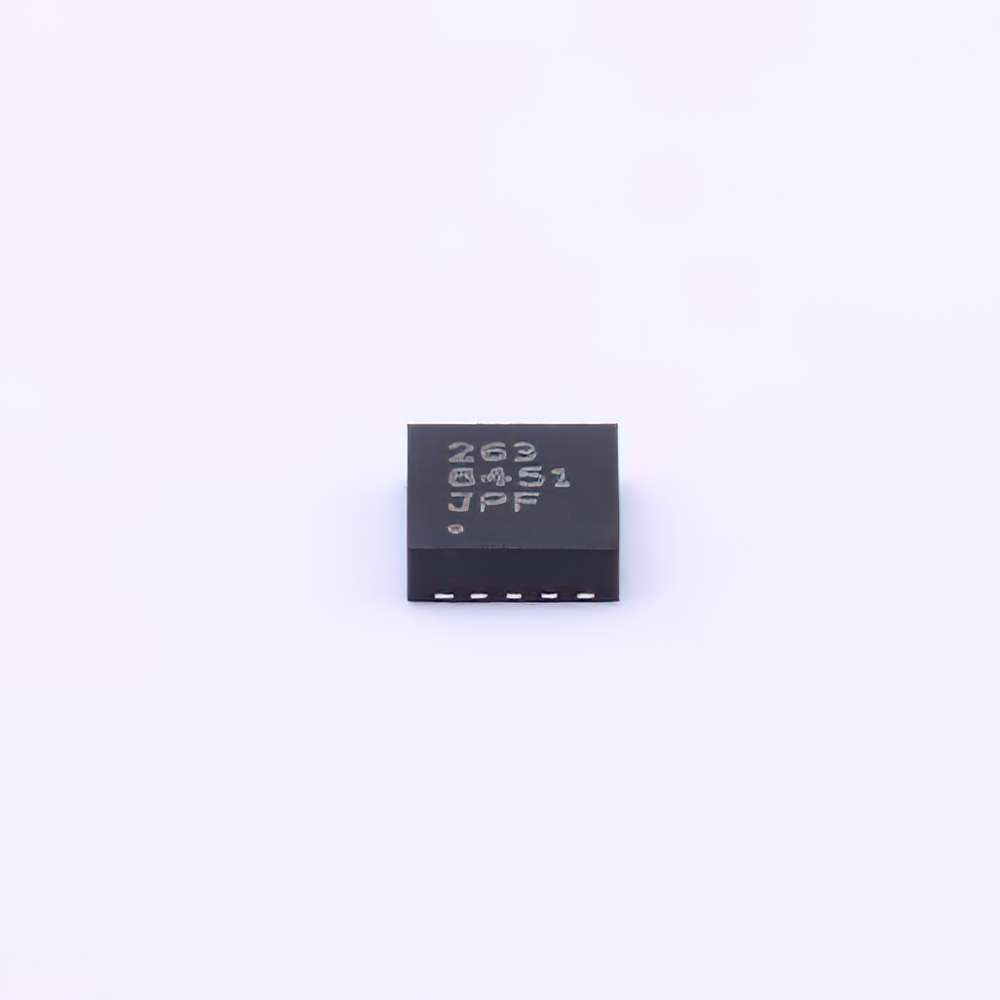

In today’s tech-driven world, sensors are the unsung heroes behind much of the innovation we see in consumer electronics, automotive applications, industrial systems, and more. Among these sensors, accelerometers have become an essential component, enabling devices to detect and respond to motion. The MMA8451QR1 from NXP Semiconductors is a highly reliable, low- Power , three-axis accelerometer that has gained popularity due to its small form factor, precision, and affordability.
The MMA8451QR1 is designed to measure the acceleration of an object in all three spatial axes—X, Y, and Z—allowing for highly detailed data collection and motion detection. Whether in a smartphone, an automotive safety system, or a wearable fitness device, the applications of this accelerometer are vast, offering innovative solutions across multiple industries.
What Makes the MMA8451QR1 Stand Out?
The MMA8451QR1 stands out for several key features that make it ideal for motion-sensing applications:
Low Power Consumption: Operating on a low supply voltage (2.16V to 3.6V), the MMA8451QR1 is optimized for battery-powered devices, contributing to extended operational life in mobile applications.
Wide Dynamic Range: With selectable full-scale ranges from ±2g, ±4g, to ±8g, the MMA8451QR1 is adaptable for detecting both subtle and significant changes in motion, making it versatile for various use cases.
High Resolution: It boasts a 14-bit resolution, providing accurate measurements over the sensor's full range.
I2C and SPI interface s: These communication interfaces ensure seamless integration with microcontrollers, making it easy to embed the sensor in a variety of systems.
With these attributes, the MMA8451QR1 is well-suited to diverse applications, from automotive systems needing precise motion detection to wearable technologies tracking human activity.
Practical Applications of the MMA8451QR1
1. Consumer Electronics and Wearables
The MMA8451QR1 is widely used in smartphones, tablets, fitness trackers, and smartwatches for gesture recognition, orientation detection, and activity monitoring. For example, in smartphones, the accelerometer detects screen orientation changes (landscape or portrait) or helps in detecting shake gestures. In fitness trackers and smartwatches, it measures steps, calories burned, and activity levels to help users maintain a healthy lifestyle.
One of the main advantages in these applications is the accelerometer's ability to monitor motion at different levels of sensitivity, offering both detailed activity tracking and power efficiency, which is critical in battery-operated devices.
2. Automotive Applications
Automotive systems are increasingly integrating motion sensors like the MMA8451QR1 to enhance both safety and functionality. In advanced driver-assistance systems (ADAS), the sensor plays a pivotal role in detecting vehicle orientation, acceleration, and deceleration during critical events such as airbag deployment or collision detection. For instance, when a car accelerates or decelerates rapidly, the accelerometer detects these changes, triggering immediate reactions like airbag inflation or automatic seatbelt tightening.
In addition, the sensor can be used for vehicle stability control, alerting drivers to hazardous driving conditions, or helping autonomous vehicles understand road conditions more accurately. The sensor's ability to measure rapid, sudden accelerations with precision ensures that automotive systems respond with high accuracy in real-time scenarios.
3. Industrial Automation and Robotics
In the realm of industrial automation, the MMA8451QR1 is leveraged for motion tracking and vibration analysis. Robotics applications often rely on these sensors to maintain precise control over movement, ensuring that robotic arms or automated vehicles can perform tasks with exactitude.
For example, the accelerometer can be used to detect vibrations in machinery or identify deviations from a normal operating trajectory, which is crucial for preventive maintenance. By monitoring the movement patterns of industrial equipment, the MMA8451QR1 helps predict failures before they happen, ultimately saving time and reducing downtime for manufacturing processes.
4. Healthcare and Medical Devices
The MMA8451QR1 also finds valuable use in healthcare and medical devices. Wearable devices used for fall detection, especially among the elderly, are integrated with accelerometers to detect sudden movements or falls. These sensors can then trigger alarms or alerts to caregivers, offering peace of mind and enhanced safety for patients.
Furthermore, the accelerometer is used in prosthetics and rehabilitation devices, helping to track the movement of limbs or providing real-time feedback to users, which is essential for effective rehabilitation.
Calibration of the MMA8451QR1 for Optimal Performance
One of the critical steps in ensuring that the MMA8451QR1 delivers accurate data is proper calibration. Calibration ensures that the sensor reads motion data correctly, minimizing any measurement errors that could result from manufacturing variances or environmental factors.
Why is Calibration Important?
Despite its inherent accuracy, no sensor is immune to minor variances. Calibration accounts for discrepancies in output due to manufacturing tolerances or environmental changes like temperature fluctuations or mechanical stress. Proper calibration of the MMA8451QR1 ensures that the sensor provides reliable data, improving the overall functionality and accuracy of the devices in which it is used.
Types of Calibration for MMA8451QR1
There are several methods to calibrate the MMA8451QR1, depending on the application requirements and environmental factors. Some of the most common calibration techniques include:
Offset Calibration: This type of calibration corrects for any zero-offsets in the sensor output when no motion is detected. A common practice is to perform offset calibration at rest, ensuring that when the device is stationary, the accelerometer reads a value close to zero (or the expected resting value based on the sensor's sensitivity range).
Scale Calibration: Scale calibration ensures that the sensor's measurements are accurate within the specified range. For example, if the sensor is set to a ±2g range, it should output precise values corresponding to real-world accelerations. This calibration often involves applying known forces or accelerations to the sensor and adjusting its output accordingly.
Temperature Compensation: The MMA8451QR1 is subject to temperature changes that can influence its measurements. Calibration for temperature variations ensures that the sensor remains accurate under different environmental conditions, which is critical in applications such as automotive systems or industrial equipment.
Calibration in Practical Use Cases
Let’s explore a few practical calibration examples:
In Automotive Crash Detection Systems: In an automotive environment, calibration ensures that the accelerometer reacts accurately to sudden vehicle impacts. If a crash occurs, the system must distinguish between an ordinary jolt (like a bump on the road) and a true collision. Calibration in this case ensures that the sensor outputs data that triggers appropriate safety responses like airbag deployment, based on precise thresholds.
In Consumer Electronics: In a smartphone, users expect smooth motion-based functions such as rotating the screen or detecting shake gestures. Calibration ensures that the accelerometer’s outputs align precisely with these real-world actions, delivering the right feedback to the user. This type of calibration can often be done during the manufacturing process but might also include user calibration options for applications like fitness tracking.
Conclusion
The MMA8451QR1 offers a combination of precision, low power consumption, and versatility, making it an indispensable tool in motion-sensing applications across multiple industries. From smartphones to autonomous vehicles and wearable healthcare devices, the MMA8451QR1 plays a key role in making technology smarter, more responsive, and more reliable.
However, the true power of the MMA8451QR1 lies not only in its inherent features but also in the critical process of calibration. Proper calibration ensures that the sensor’s data is accurate and reliable, optimizing the performance of the systems in which it is embedded. As motion sensing continues to be a critical component in the future of technology, the MMA8451QR1 will undoubtedly remain at the forefront of innovation.
