Understanding the IRFR5305TRPBF and Common Issues

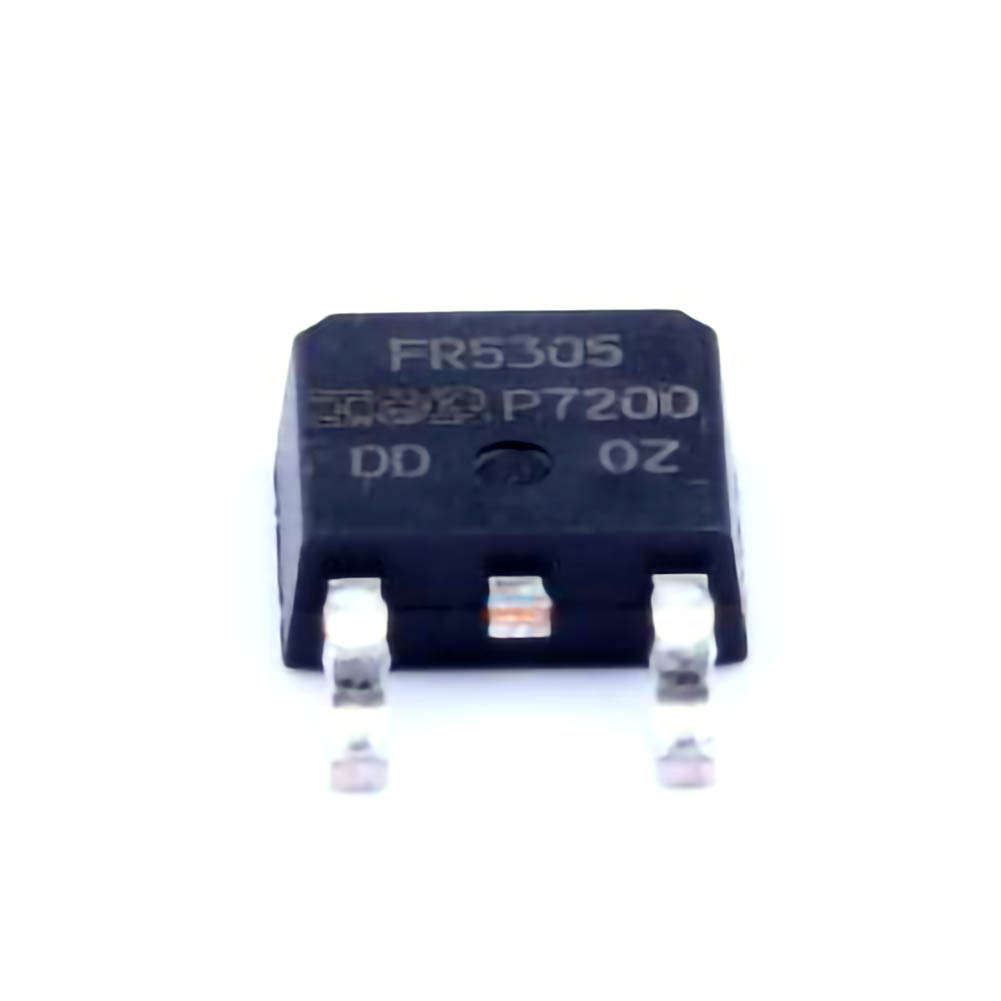

The I RF R5305TRPBF is a widely used N-channel MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) known for its robustness and reliability in various applications. Its primary function in a circuit is to control the flow of electrical current by switching between conducting and non-conducting states. Commonly found in power management, motor control, and other switching circuits, this MOSFET offers several advantages such as low on-resistance, high-speed switching, and low gate charge. However, like any electronic component, the IRFR5305TRPBF is not immune to failures and issues that can arise during its use.
1. Overheating and Thermal Runaway
One of the most common issues faced with MOSFETs , including the IRFR5305TRPBF, is overheating. Overheating can lead to thermal runaway, which occurs when the device's temperature exceeds its maximum rated operating limit. This can cause permanent damage to the MOSFET and compromise the overall circuit.
Possible causes of overheating include:
Insufficient heat sinking: The IRFR5305TRPBF requires adequate heat dissipation in high-power applications. Without proper heat sinks or thermal management, the MOSFET may overheat quickly.
Overvoltage conditions: If the gate-source voltage (V_GS) exceeds the specified range, it can lead to excessive current flowing through the MOSFET, generating more heat.
High current loads: Excessive current through the MOSFET due to improper load conditions can also lead to overheating.
Solutions:
Improve heat dissipation: Ensure that the IRFR5305TRPBF is mounted with proper heat sinks or thermal pads to allow for efficient heat transfer. This is especially important in high-power circuits.
Monitor the operating conditions: Regularly monitor the voltage and current levels to ensure that the device is not exposed to extreme conditions.
Use current-limiting circuits: Implement current-limiting resistors or feedback circuits to prevent the MOSFET from carrying more current than it can handle.
2. Gate Drive Issues
The performance of an N-channel MOSFET like the IRFR5305TRPBF is highly dependent on the gate drive. The gate needs to be driven with a voltage that is sufficiently high to switch the MOSFET fully on (saturation mode). An inadequate gate drive voltage or improper driving circuitry can result in partial switching, leading to inefficiency and potential failure.
Possible causes of gate drive issues:
Inadequate gate-source voltage (VGS): If the VGS is too low, the MOSFET may not switch fully on, leading to high on-resistance, overheating, and energy loss.
Slow switching speed: A slow gate drive can result in inefficient switching, generating heat and potentially damaging the MOSFET over time.
Solutions:
Ensure proper gate voltage: The IRFR5305TRPBF requires a V_GS of 10V or higher to switch on fully. Ensure that the gate driver circuit is capable of providing this voltage.
Use a dedicated gate driver: A specialized gate driver IC can provide the necessary current and voltage to quickly switch the MOSFET, minimizing the risk of heat generation during switching.
Optimize the gate resistor: Choose an appropriate gate resistor value to balance the switching speed and power dissipation.
3. Incorrect Component Selection
Another common issue in circuits using the IRFR5305TRPBF is incorrect component selection. Many times, the MOSFET may not be suitable for the voltage, current, or switching frequency required by the application. This can result in unreliable performance or even damage to the MOSFET.
Possible causes of incorrect component selection:
Inadequate voltage rating: If the MOSFET is exposed to a voltage higher than its rated drain-to-source voltage (V_DS), it could lead to breakdown and failure.
Incorrect current handling: If the MOSFET is required to handle more current than its rated drain current (I_D), it may overheat or experience thermal stress.
Mismatch in switching frequency: If the application demands a high switching frequency, the IRFR5305TRPBF may not be ideal, as its switching characteristics may not be optimized for fast switching.
Solutions:
Carefully check ratings: Always match the voltage and current ratings of the MOSFET to the specifications of your application. Ensure that the IRFR5305TRPBF’s VDS and ID are sufficient for your circuit.
Consider alternative MOSFETs for high-speed applications: If your application requires high-speed switching, consider a MOSFET with faster switching characteristics or a different technology like gallium nitride (GaN) devices.
Perform thermal simulations: Use simulation software to ensure that the thermal load will be within acceptable limits for the chosen MOSFET.
Diagnosing and Resolving Performance Issues with the IRFR5305TRPBF
While the IRFR5305TRPBF is a reliable component, improper usage or unforeseen conditions in a circuit can lead to performance degradation. Diagnosing these issues early and taking the appropriate steps can significantly improve the longevity and efficiency of your electronic system. Below are some common performance-related issues and their solutions.
4. MOSFET Not Switching (Stuck in Off-State)
Another issue that can arise is when the MOSFET remains in the off-state, even when the gate drive should turn it on. This can prevent current from flowing through the MOSFET, causing the circuit to malfunction.
Possible causes of this issue include:
Low gate drive voltage: As mentioned earlier, the IRFR5305TRPBF requires a gate-source voltage of at least 10V to switch on. If this voltage is too low, the MOSFET will not turn on.
Faulty gate driver: A malfunction in the gate driver circuitry can also prevent the gate from being driven properly, causing the MOSFET to remain off.
Damaged MOSFET: A damaged MOSFET may exhibit this behavior if the gate oxide layer is compromised or other internal faults occur.
Solutions:
Check gate voltage: Verify that the gate-source voltage is within the recommended range for the IRFR5305TRPBF (typically 10V to 15V for full switching).
Inspect the gate driver: Ensure that the gate driver is functioning correctly and is capable of delivering the necessary voltage and current to switch the MOSFET on and off properly.
Test the MOSFET: If the MOSFET is suspected to be damaged, test it in a separate circuit or replace it to see if the issue persists.
5. Gate-to-Source Leakage
Gate-to-source leakage is another issue that can cause performance degradation in MOSFETs. This occurs when a small current leaks through the gate-source junction, causing unintended current flow even when the MOSFET is in the off-state. In high-precision applications, this leakage can cause problems with signal integrity or unwanted current consumption.
Possible causes of gate-to-source leakage:
Damage to the gate oxide layer: Overvoltage or electrostatic discharge (ESD) can damage the gate oxide, resulting in leakage current.
High temperature conditions: Elevated operating temperatures can increase the likelihood of leakage currents, especially if the MOSFET is not properly thermally managed.
Solutions:
Ensure proper voltage: Prevent overvoltage on the gate terminal by using gate clamping diodes or limiting resistors to avoid exceeding the maximum V_GS rating.
Enhance thermal management: Ensure the MOSFET operates within its recommended temperature range. Implement heat sinks, fans, or other cooling methods to prevent temperature-induced leakage.
Replace the MOSFET if necessary: If gate-to-source leakage is detected, it may be a sign of permanent damage, and the component should be replaced.
6. Short Circuit Protection
In many circuits, especially power supplies and motor drivers, the IRFR5305TRPBF may be subjected to short-circuit conditions. Short circuits can cause catastrophic damage to the MOSFET, resulting in thermal stress, overheating, and failure.
Possible causes of short circuits include:
Overload conditions: A short circuit on the load side can cause excessive current to flow through the MOSFET.
Failure of external components: Faulty components such as resistors, capacitor s, or diodes can cause short circuits if they fail in an abnormal state.
Solutions:
Implement current-limiting protection: Use fuses, current-limiting resistors, or feedback control loops to detect and prevent excessive currents before they reach damaging levels.
Use MOSFETs with integrated protection features: Some MOSFETs include features like overcurrent protection or thermal shutdown to safeguard the device in harsh conditions.
Conclusion
The IRFR5305TRPBF is an exceptional MOSFET for various switching applications, but like any electronic component, it requires careful handling and proper circuit design to ensure optimal performance. By understanding common issues such as overheating, gate drive problems, incorrect component selection, and performance degradation, you can diagnose and resolve problems quickly, ensuring a reliable and long-lasting electronic system.
Implementing proper thermal management, gate drive design, and protection circuits can help mitigate most of the potential issues that might arise with this MOSFET. Regular testing and monitoring, along with adhering to the component's specifications, are key to ensuring that your circuits function efficiently and remain in good working condition.
