The STM8S003F3P6TR microcontroller is widely used in various embedded system applications due to its efficiency and low Power consumption. However, like any hardware component, users may face challenges during development and implementation. In this article, we explore the common troubleshooting issues faced by developers working with the STM8S003F3P6 TR, along with practical solutions to overcome them. Whether you're a beginner or an experienced developer, this guide will help you identify and fix problems quickly, ensuring a smooth experience with this versatile MCU.
Understanding the Common Issues with STM8S003F3P6TR and Their Solutions

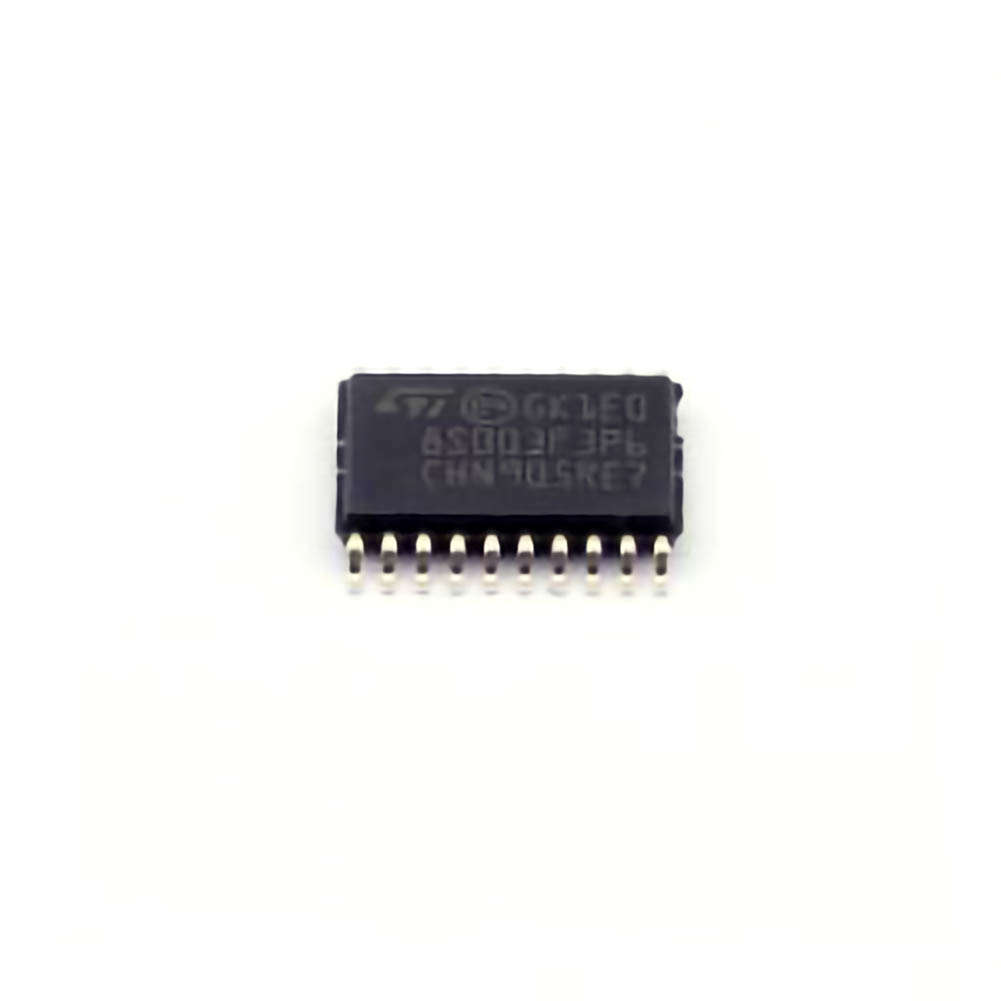

The STM8S003F3P6TR microcontroller from STMicroelectronics is a popular choice for developers working on embedded systems. Featuring an 8-bit architecture, a high-performance CPU, and a range of peripherals, it is ideal for applications where size and power efficiency are crucial. However, as with any hardware, developers may encounter a few challenges when working with the STM8S003F3P6TR.
In this section, we will explore the most common issues faced during the development and programming phases of working with the STM8S003F3P6TR and offer solutions that will help resolve these problems efficiently.
1. Incorrect Programming or Flashing of the STM8S003F3P6TR
One of the most common issues developers face is incorrect programming of the microcontroller. This can happen if there are errors in the firmware, incorrect connections during programming, or issues with the programmer/debugger tool itself.
Solution:
Check Connections: Ensure that the programming tool (such as ST-Link or a similar in-circuit programmer) is properly connected to the target device. Pay special attention to the connections for VCC, GND, SWDIO, and SWCLK pins, which are essential for proper Communication between the programmer and the microcontroller.
Use a Reliable Programmer: Make sure the programmer/debugger tool is compatible with the STM8S003F3P6TR. Popular tools like ST-Link or USB-based programmers often work well, but it's critical to use the latest drivers and software for your programmer.
Verify Firmware File: Double-check the firmware or hex file you're trying to load onto the device. A corrupted or incompatible firmware file will lead to unsuccessful programming.
Use the STM8 Flash Loader: STMicroelectronics offers a Flash loader demonstration program that can help program the STM8S003F3P6TR. This tool can be an excellent fallback if you're having trouble with other software.
2. Failure to Start Up After Programming
After successfully programming the STM8S003F3P6TR, developers may encounter a situation where the microcontroller fails to start or run the programmed firmware. This issue can be frustrating, but it is often caused by a few common errors.
Solution:
Check Reset Circuit: The STM8S003F3P6TR requires a proper reset circuit to initialize the microcontroller. If the reset pin (RST) is not connected or is improperly configured, the device will not start up correctly. Ensure that the reset circuit is in place, and if necessary, check for external components like capacitor s and resistors that may be involved in the reset process.
Confirm Power Supply: Inadequate power can lead to startup failure. Ensure that the microcontroller is receiving the proper voltage (3.0V to 3.6V) and that the power supply is stable and reliable. A fluctuating or unstable power source could cause the MCU to behave unpredictably.
Check for Bootloader Conflicts: If you have implemented a custom bootloader or are using a factory-installed bootloader, make sure the bootloader is not conflicting with your application. Bootloader conflicts can prevent the firmware from running properly.
3. Communication Issues (USART, SPI, I2C)
Interfacing with other peripherals through communication protocols such as USART, SPI, or I2C is a common requirement in embedded systems. However, issues related to communication are often encountered, including incorrect baud rates, mismatched settings, or wiring problems.
Solution:
Verify Peripheral Configuration: Ensure that the communication settings (e.g., baud rate, parity, data bits) for USART, SPI, or I2C are correctly configured on both the microcontroller and the external device you're trying to communicate with. Mismatched configurations are a common cause of communication failures.
Check Pin Mappings: Double-check the pin mappings for the communication lines. For example, if you're using SPI, ensure that the SCK, MOSI, and MISO pins are correctly mapped, and if you're using I2C, confirm the SDA and SCL lines are correctly connected.
Signal Integrity: Use an oscilloscope to check the integrity of the signals. If the signal levels are low, there might be an issue with the impedance matching or long wires causing signal degradation. In such cases, consider using buffers or shorter traces.
4. Watchdog Timer Problems
The Watchdog Timer (WDT) is designed to reset the STM8S003F3P6TR in case the firmware becomes unresponsive. However, improper configuration or use of the watchdog timer can result in unexpected resets or the microcontroller becoming stuck in an infinite reset loop.
Solution:
Configure Watchdog Timer Correctly: The WDT should be enabled with appropriate timeouts. If the timeout is too short, it may reset the microcontroller even if the application is running normally. Adjust the timeout based on your application requirements.
Clear WDT Regularly: If the WDT is enabled, make sure to clear it within the firmware regularly to prevent accidental resets. Failing to clear the WDT within the designated timeout period will result in a reset.
Disable WDT During Debugging: During development and debugging, consider temporarily disabling the watchdog timer to avoid it triggering resets while you test and debug your code.
5. Low Performance or Unresponsiveness
If the STM8S003F3P6TR is not performing as expected, or if it's unresponsive, the issue could stem from inefficient code, improper Clock configuration, or inadequate resources.
Solution:
Optimize Code: Ensure that your code is optimized for performance. Avoid using unnecessary loops or delays that might consume excessive CPU time. The STM8S003F3P6TR has a limited clock speed, so efficient code is crucial for maximizing performance.
Check Clock Configuration: The STM8S003F3P6TR offers various clock sources, such as the internal 16 MHz oscillator and external crystals. Make sure the clock configuration is set up correctly. If you're using an external crystal, ensure it's properly connected and functioning.
Advanced Troubleshooting and Solutions for the STM8S003F3P6TR
While Part 1 addressed basic troubleshooting techniques, some issues can be more complex, particularly when dealing with more advanced features of the STM8S003F3P6TR. In this section, we will explore more sophisticated troubleshooting tips and solutions to help you handle tougher challenges in your development process.
6. Debugging with Breakpoints and Watch Variables
One of the most powerful features of modern development environments is the ability to set breakpoints and watch variables. However, debugging can sometimes be tricky, especially when dealing with embedded systems where hardware interactions and timing are critical.
Solution:
Use an External Debugger: To effectively debug your code, consider using an external debugger like ST-Link. This will allow you to set breakpoints, step through code, and monitor register values directly from the IDE.
Enable SWD Debugging: If you have trouble debugging through the standard debugging interface , enable Serial Wire Debug (SWD) in your configuration. SWD offers faster debugging speeds and more advanced capabilities than traditional JTAG debugging.
Monitor Peripheral Registers: When debugging communication issues, don't forget to monitor the status registers of peripherals like USART, SPI, and I2C. These registers often provide useful insights into communication failures or peripheral malfunctions.
7. Power Consumption Issues
The STM8S003F3P6TR is designed for low-power applications, but developers may encounter power consumption issues if the microcontroller is not configured correctly, or if there are unnecessary power-draining peripherals enabled.
Solution:
Enable Low-Power Modes: The STM8S003F3P6TR offers various low-power modes, including Sleep Mode and Halt Mode, which can significantly reduce power consumption. Review your application code to ensure that unnecessary peripherals are powered down when not in use.
Disable Unused Peripherals: If your application doesn't require certain peripherals like the ADC or UART, disable them in the firmware. This will help reduce the overall current draw of the microcontroller.
8. Clock Source Failures
Clock-related issues can often cause serious malfunctions, particularly if the STM8S003F3P6TR is running off an external crystal or oscillator.
Solution:
Check Oscillator Connections: If you're using an external oscillator or crystal, verify that all connections are properly made and that the oscillator is functioning. Incorrect connections or a malfunctioning crystal can prevent the microcontroller from booting or operating correctly.
Switch to Internal Oscillator: If you're having trouble with the external clock, try switching to the internal 16 MHz oscillator as a fallback. This may help isolate the issue and allow you to continue development while troubleshooting the clock source.
9. External Interference or Noise
Sometimes, external electrical interference can affect the STM8S003F3P6TR’s performance, particularly in industrial environments where electromagnetic interference ( EMI ) is prevalent.
Solution:
Use Proper Decoupling Capacitors : Decoupling capacitors placed near the VCC and GND pins can help filter out noise and stabilize the power supply.
Improve PCB Layout: When designing the PCB, ensure that high-speed signals are routed away from sensitive analog and digital lines. Use ground planes and ensure proper signal integrity to reduce the risk of interference.
10. Firmware Bugs or Incompatibilities
Firmware bugs, either in the standard library or your custom code, can lead to unpredictable behavior, crashes, or even permanent damage to the microcontroller if not handled carefully.
Solution:
Use STMicroelectronics’ Standard Peripheral Library: STMicroelectronics provides a comprehensive standard peripheral library that helps avoid common mistakes. Ensure that you're using the most up-to-date version of the library.
Test on Different Platforms: If possible, test your firmware on a different development board or with different peripheral devices to help isolate whether the issue lies with the STM8S003F3P6TR or with the application code itself.
By following these troubleshooting steps and solutions, you can overcome common issues that arise when working with the STM8S003F3P6TR microcontroller. Whether you're debugging communication issues, optimizing power consumption, or resolving hardware-related problems, this guide provides the insights necessary to ensure smooth development with this reliable and efficient MCU.
